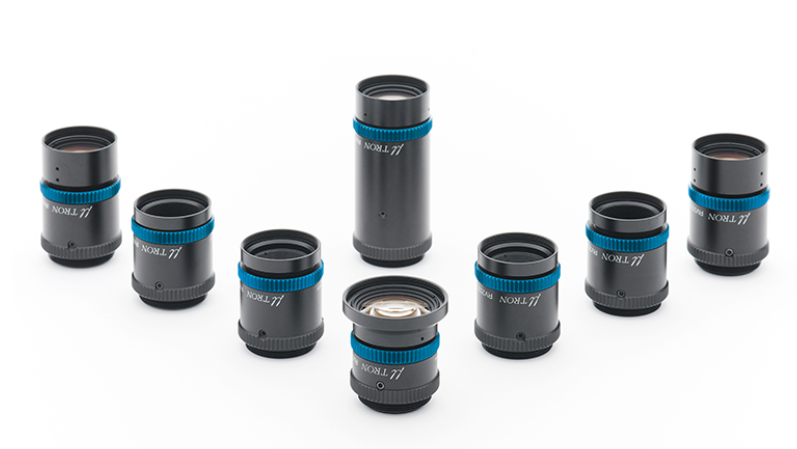

RV 系列
机械人视觉系统用耐震镜头
300 万像素，低畸变
特 点
适合有震动的环境使用
聚焦：双螺母与固定螺丝
能选光圈：开放 / 4 / 5.6 / 8
紧凑设计
阵容 12 种焦距
|
型号 |
焦距 |
最大使用倍率 |
工作距离 |
F 值 |
TV 畸变率 |
视野（ H x V ） |
最大对应传感 器尺寸 |
|
RV0420 |
4mm |
0.038x |
0.1m – ∞ |
2 (OPEN) |
0.91% |
75.24°x 59.96° |
1/2” |
|
RV0622 |
6.5mm |
0.055x |
0.1m – ∞ |
2.2 (OPEN) |
-0.01% |
52.35°x 40.47° |
1/2” |
|
RV0814 |
8mm |
0.074x |
0.1m – ∞ |
1.4 (OPEN) |
0.83% |
56°x 44° |
2/3” |
|
RV1022 |
10mm |
0.1x |
0.1m – ∞ |
2.2 (OPEN) |
-0.08% |
34.61°x 26.31° |
1/2” |
|
RV1214 |
12mm |
0.08x |
0.15m – ∞ |
1.4 (OPEN) |
-0.12% |
39°x 30° |
2/3” |
|
RV1520 |
15mm |
0.3x |
0.05m – ∞ |
2 (OPEN) |
-0.09% |
31.79°x 24.11° |
2/3” |
|
RV2020 |
20mm |
0.25x |
0.09m – 1m |
2 (OPEN) |
-0.10% |
24.11°x 18.2° |
2/3” |
|
RV2520 |
25mm |
0.2x |
0.15m – 1m |
2 (OPEN) |
-0.01% |
19.58°x 14.75° |
2/3” |
|
RV3020 |
30mm |
0.16x |
0.2m – 1m |
2 (OPEN) |
-0.02% |
16.69°x 12.55° |
2/3” |
|
RV3519 |
35mm |
0.13x |
0.3m – 1m |
1.9 (OPEN) |
-0.03% |
14.32°x 10.77° |
2/3” |
|
RV5025 |
50mm |
0.13x |
0.4m – 1m |
2.5 (OPEN) |
0.03% |
10.38°x 7.82° |
2/3” |
|
RV7538 |
75mm |
0.2x |
0.4m – 1m |
3.8 (OPEN) |
-0.01% |
6.81°x 5.11° |
2/3” |
